LED regular screen

KLT-P5

KLT-P5

Model:
Scope:
Classification:LED regular screen

Telephone consultation

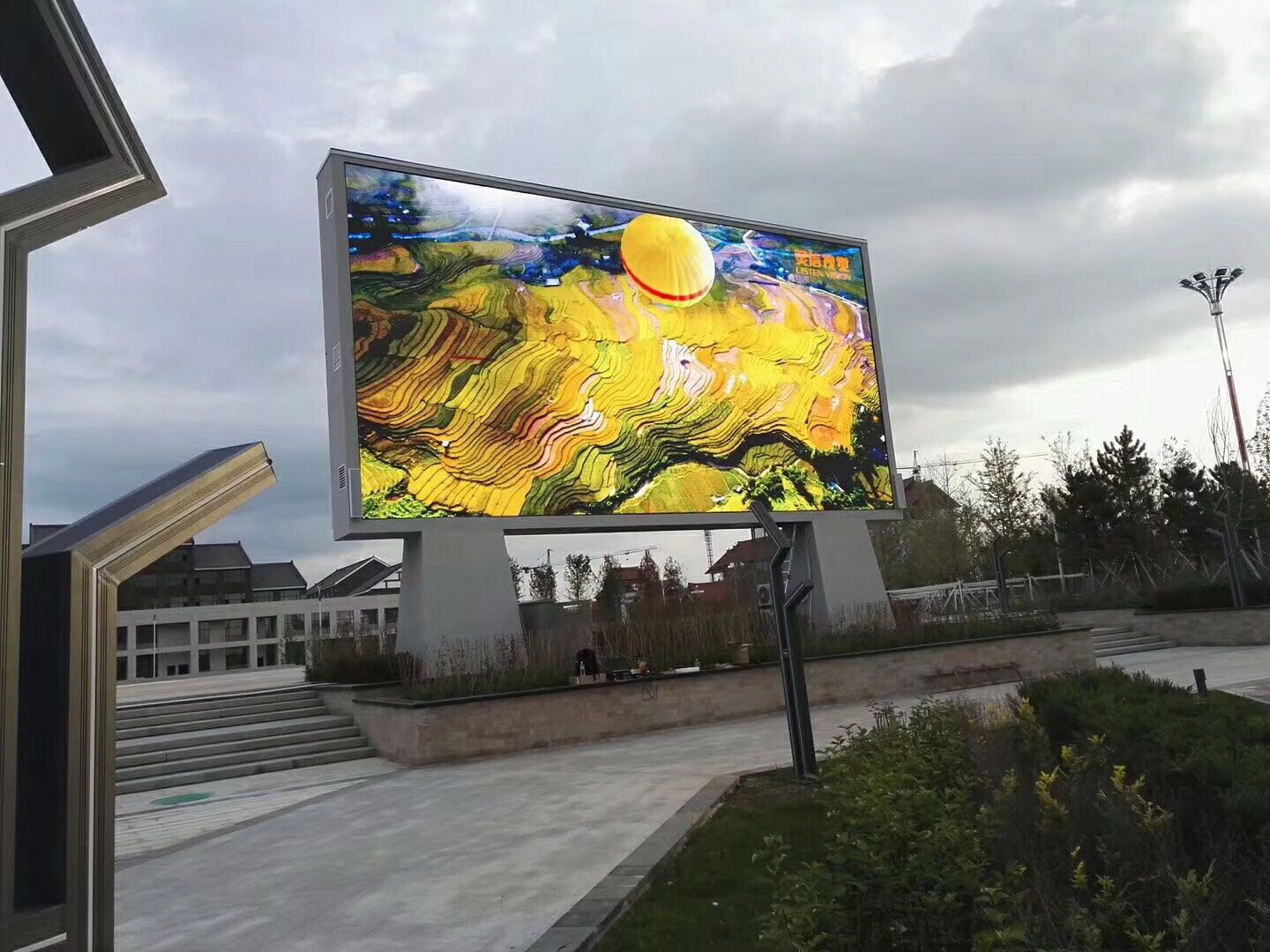

The characteristics of the P5 outdoor LED display advertisement LED display not only has high brightness, large contrast, bright colors, but also displays dynamic pictures and text. It actively emits light, has high distance and high resolution, and even beyond 100 meters, the visual effect is the same as watching TV at home. It has been widely used in REN traffic in public places, traffic arteries. Strong applicability: our company has conducted a special study of outdoor environment, and applied the results to the design system, so that its products in various harsh outdoor environment adaptation and reliability have been significantly improved. Rich in color: It consists of three basic colors(red, green, and blue) to display the unit box body, red, green, and blue 1024 grayscale, showing 1.07 billion colors, Make the electronic screen display color rich, high saturation, high resolution, high display frequency of dynamic images;



A, high brightness: With ultra-high brightness LED, the distance under the sun QIANG light is still clearly visible;



B, good results: using non-linear correction technology, the image is clearer and more layered;



C, strong reliability: using static scanning technology and modular design technology, reliability, stability is higher;



D,Diversification of display modes: support for multiple display modes; E) Easy to operate: use of universal video playback software to make the system



High brightness: using ultra high brightness LED, the sun is shining far below the distance still qing'xi'ke


The effect is good: using the nonlinear correction technology, the image is clearer and the sense of hierarchy is stronger.


Strong reliability: using static scanning technology and modular design technology, higher reliability and stability;


Display module diversification:
 support multiple display modes;


Easy to operate: the general video player software is used to make the operation very convenient.


Scope of application: Government Square, Leisure Square, Business Center, Advertising Information Publishing Board, Commercial Street, Railway Station, etc.

Product specification

P5 three kinds of technical parameters



LED屏机箱
Cabinet
箱体尺寸       Dimension
640mm*640mm
单体模组数   Monomer Module Number
8pcs
供电方式       Power supply
5V/60A*2 pcs
散热方式       Thermal discharge
fan 1pcs
箱体分辨率     Pixel per cabinet
128mm*128mm
最佳视距       Best viewing distance
5M~100M
最佳视角       Best viewing angle
160°(W) 120°(H)
环境温度       Temperature
存贮storage:-35℃~+85℃
工作working:-20℃~+50℃
相对湿度       Relative humidity
10%-95%
屏体厚度       Thickness
85mm
供电
Power
工作电压       Working voltage
AC220V±10%
平均功耗   Average Power consumption
390W/㎡
最大功耗      Max.Power consumption
≤980W/㎡

电流           Current
≤20mA(single LED)
控制系统
Control system
控制主机       CPU
Pentium4 or above P4或以上
操作系统       Operation system
WIN98/2000/NT/XP/WIN7
控制方式       Control method
同步控制Synchronization
主要技术参数
 Main technical
 parameter
驱动器件       Driving device
Constant drive IC 恒流驱动
刷新频率       Refresh frequency
≥1920HZ
灰度/颜色      Grey scale/colors
65536级,可显示16.7M颜色
65536gray level/16.7M colors
平均无故障时间 MTBF
≥9000hours
电源开关       Power switch
自动开关Automatic switch
显示模式       Display Mode
≥800*600/1024*768
