LED regular screen

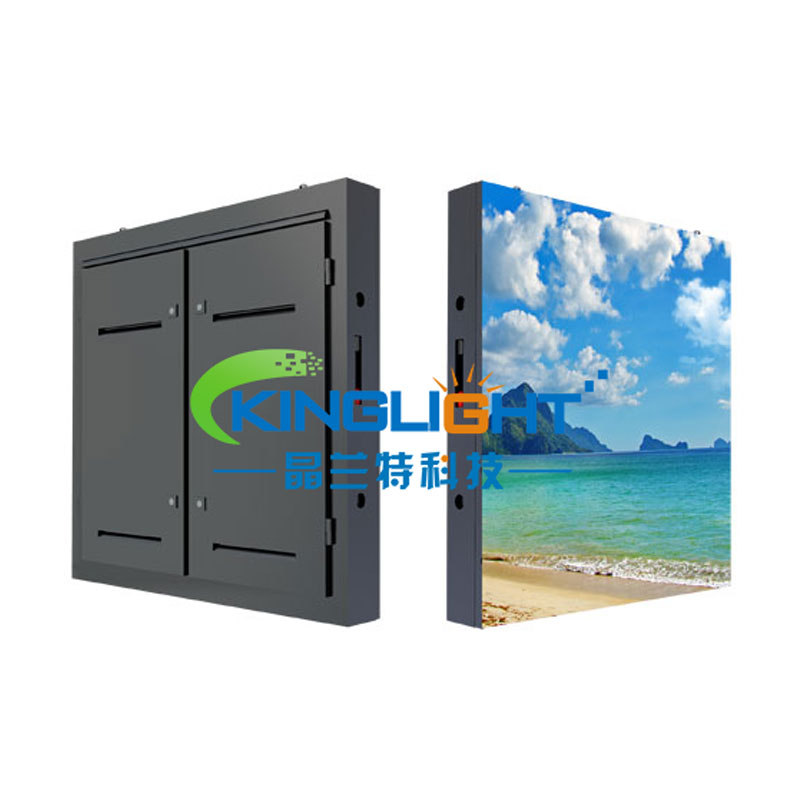

KLT-P10 Fixed Cabinet

KLT-P10 Fixed Cabinet

Model:
Scope:
Classification:LED regular screen

Telephone consultation



KINGLIGHTLED outdoor outdoor maintenance products are mainly divided into 3 specifications, such as outdoor P8, P10, P6 and so on.


The module 320*320mm is quickly disassembled and assembled in front, and the box 960*960mm is affordable.


Product characteristics:
1.The box can be maintained before and after, and can be installed without maintenance passage. It can save space and cost and improve work efficiency.
2 has a horizontal vertical 120 degree ultra wide viewing angle, brightness up to 6800cd/m2, is the first choice
 for outdoor advertising.
3 The box can be stacked and hoisted without screw fixing technology, and the installation and operation is more convenient.
4 RGB deep gray processing, rich and exquisite colors, natural and clear picture.
5 close to the closed heat dissipation structure, according to the thermal effect is better.
6 the box error is within 0.1mm, and the screen flatness is higher.
7 high strength anti-aging fabric, IP65 protection level, can withstand any harsh environment test.
8 the connector adopts professional aviation plug, and the quality and safety are guaranteed.


Suitable occasions:

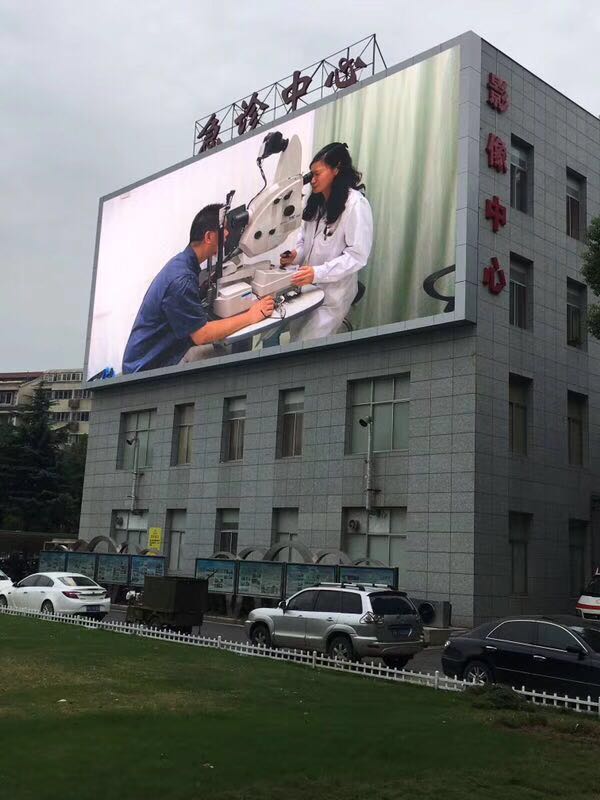

It is suitable for outdoor advertisements, shopping malls, squares, theme parks, gymnasiums, etc.



P10 outdoor die casting aluminum box 960mm*960mm parameters:



Product name Surface mounted P10 unit board Surface mounted P8 unit board
LED encapsulation SMD3535White light black shell SMD3535White light black shell
Red light chip  Epistar  Epistar
Red chip size 10mil 10mil
Green light chip Epistar Epistar
Green chip size 9 * 11 mil 9 * 11 mil
Blue light chip Epistar Epistar
Blue chip size 9 * 11 mil 9 * 11 mil
Horizontal viewing angle ≥140(+10 / -10)° ≥140(+10 / -10)°
Vertical viewing angle ≥120(+10 / -10)° ≥120(+10 / -10)°
brightness ≥7000CD / ㎡ ≥7000CD / ㎡
Pixel spacing 10 mm 8 mm
Pixel density 10000Dots / ㎡ 10000Dots / ㎡
Pixel composition 1 RGB 1 RGB
Unit plate resolution 32*32=1024Dots 32*32=1024Dots
Driving mode and IC 2scan(constant current) ICN2026 4scan (constant current)ICN2026
Minimum sight distance 10 m 8 m
Unit plate size (length * width) 320*320*19(mm) 320*320*19(mm)
Unit weight 250±10g 250±10g
Flatness of unit plate ≤0.2mm ≤0.2mm
Structural characteristics Lamp drive in one Lamp drive in one
Input voltage (DC) 4.6--5.5V 4.6--5.5V
Maximum current 5A 5A
Maximum power of unit plate 25W 25W
MTBF ≥10000h ≥10000 h
Service life ≥50000 h ≥50000 h
Pixel runaway rate <1 / 100000 <1 / 100000
Use of the environment outdoor outdoor
Working temperature range -20~65℃ -20~65℃
Working humidity range  10%~90%RH  10%~90%RH
Storage temperature range  0~40℃   0~40℃
Storage humidity range 30%~60%RH

 30%~60%RH
