FEATURES & ADVANTAGES
1.Die casting aluminum,super slim design
2.Fast lock desgin quickly Assembly
3.High refresh rate,low light ,hiah gray
4.High precision ,seamless splicing
5.No fan,mute design
6.Low power consumption ,enery -saving conservation and envionmental protection

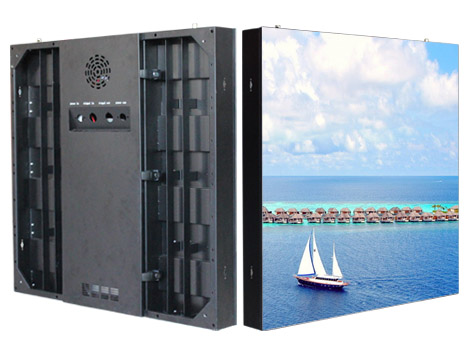

![if5-led-display[1].jpg](/upload/202001/11/202001111515072862.jpg)
| Item |
P4 |
| Pixel pitch | 4mm |
| Lamp | SMD2121 |
| Pixel Density Dots/m2 | 40000 |
| Module resolution | 64*32 |
| Module size | 256mm*128mm*75mm |
| Scan mode | Static current |
| Brightness | ≥1500nits,Adjustable |
| Cabine size | 512mm*512mm |
| View Angel H/V | 140degree -160degree |
| Signal Processing | 16bits |
| Control distance |
CATS cable< 100m,Multimode optic fiber <500m,Singlemode optic fiber >2km |
| Refresh frequency | 60 HZ |
| Refresh Rate | 1920HZ |
| MTBF | >5000hours |
| Lifespan | 100 000hours |
| Working Temperature | Working temperature:-20℃ -50℃ /20%-90%，Storage Temperature: -20℃ -60℃ |
| M2 power consumption(MAX) | <500W |
| M2 power consumption (AVE) | <300W |
| Cabinet weight | 11KG |
| Video display function |
Synchron displaybkindsnof text, graphics,pictures,signs,flashes,and any signal from TV,VCD ,DVD,Camera,and scanner and so on,support PAL,NTSC |
