KLT-P4.81
Model:
Scope:
Classification:Rental LED Display
Telephone consultation

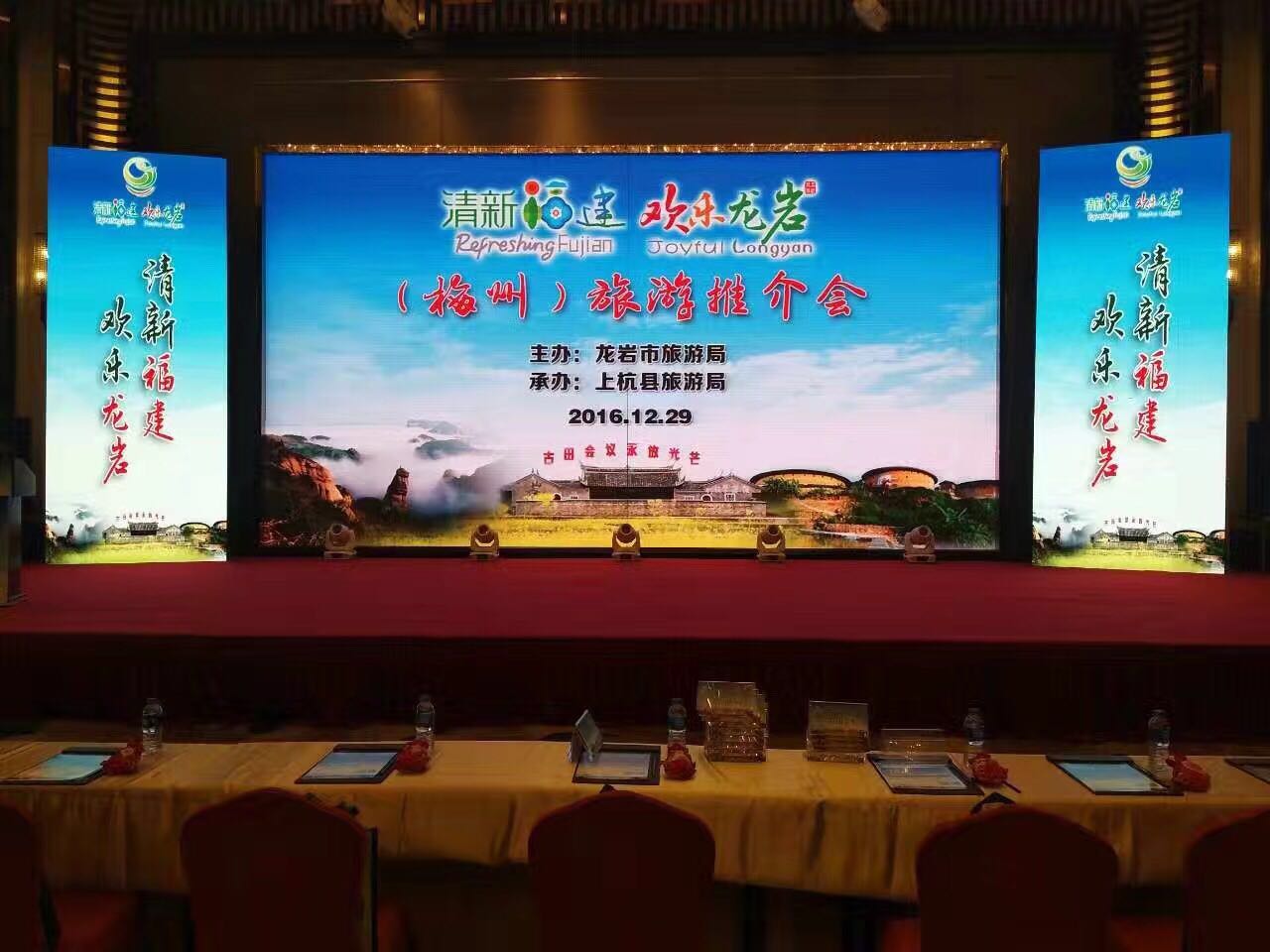

Stage LED display features and advantages
1, the screen design is simple, the compatibility is strong, not only the installation, disassembly is convenient, more cost advantage, suitable for large area manufacturing stage background.
2, high gray, Gao Shuaxin rate: the use of 12 data processing, high refresh to make the LED stage screen performance of the image of the scene vivid, abstract images, can create a dream effect.
3, equipped with a professional audio and video processing system, support for a variety of signal processing on the stage, from the signal processing to ensure the quality, making it possible to play a high fidelity image signal.
Technical parameters:
|
parameter |
LED Rental shaft aluminum series | |
| Pixel spacing | 3.91mm | 4.81mm |
| Pixel density | 65410 points /㎡ | 43222 points /㎡ |
| LED Lamp tube configuration | 1R1G1B | |
| Type of LED lamp | SMD2121 | |
| Vision (angle) | level ≥160°，vertical ≥160° | |
| brightness | 1500cd/㎡ | |
| Driving mode | 1/16scan | 1/13scan |
| Gray level | 16384 level | |
| refresh frequency | ≥2000HZ | |
| Module Size | 250*250mm | |

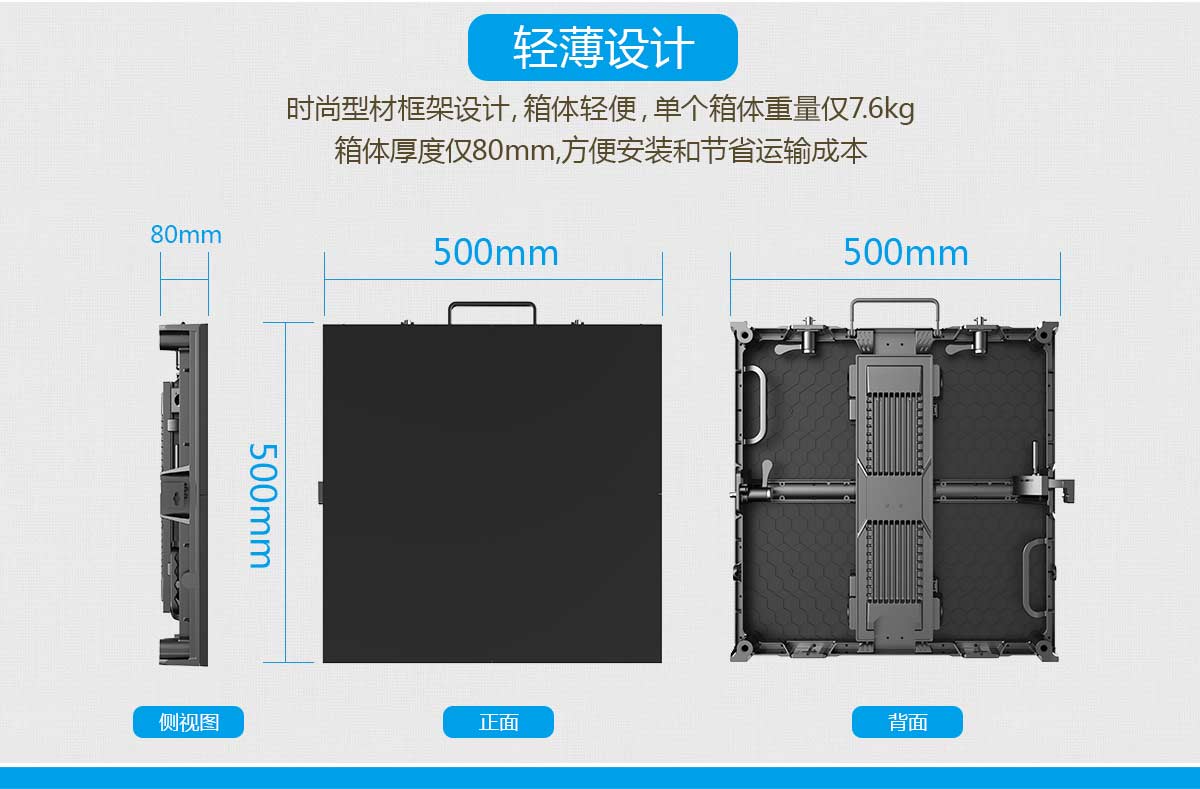

| Dimension | 500*500mm / 500*1000mm | |
| Cabinet material | Pressure aluminium | |
| Box weight | 6kg | |
| Average power | 300W/㎡ | |
| maximum power | 700W/㎡ | |
| Maintenance mode | Post maintenance | |
| IP level | IP54 | |
| Operating temperature / humidity | temperature：-30℃~50℃ humidity：10~90%RH | |
| Storage temperature / humidity | temperature：-40℃~60℃ humidity：10~90%RH | |
| Working life (H) | ≥50000h | |
