Creative LED Display

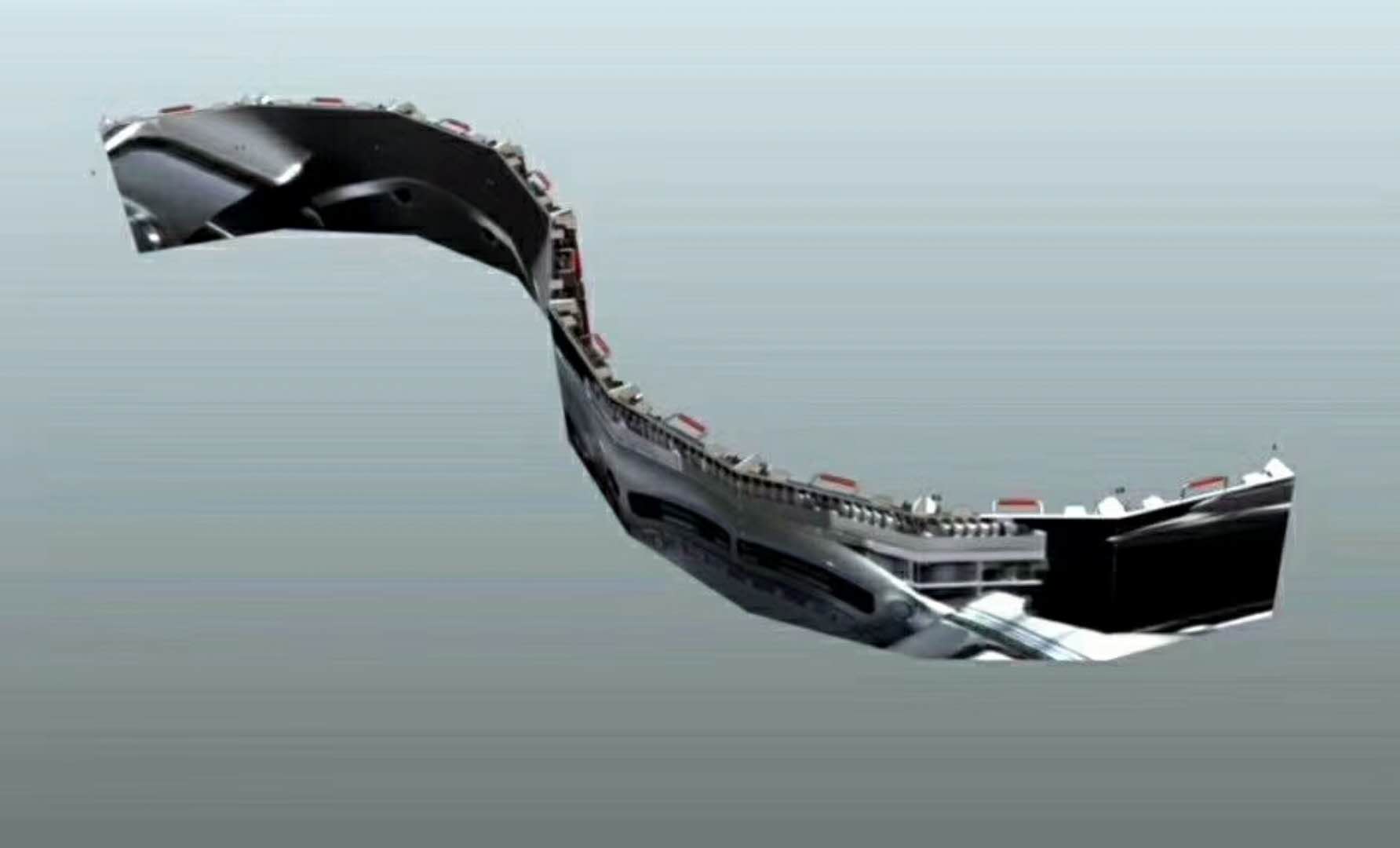

P2.976 inner and outer arc three-in-one universal cabinet

Model:
Scope:
Classification:Creative LED Display

Telephone consultation

 This series of products is the high-end products in the series of high-definition LED display screen in Jing Lan Te room. It uses high-refresh IC, SMD LED, wide-band PFC function, high-quality power supply, die-casting aluminum box and other key materials.   Dynamic scanning mode, the screen brightness can reach 800-2000 nits, with high density, high definition, high gray scale, high efficiency (energy saving) and high. Advantages of contrast, high quality, unique appearance, safety, stability, reliability and quick response.

        • Application occasions
      It is suitable for military and public security, energy, urban management, public information dissemination platform, transportation and transportation, radio and television, cinema, enterprise video conferencing system, medical/educational and other fixed installation occasions.
         Product advantages:
1, ultra lightweight: single box 5-7.5KG, 70-100mm thick;


2. Ultra-high refresh rate: It can ensure that the high-definition camera and camera can capture the delicate high-definition display screen;


3, low brightness and high ash performance: under low brightness, the display is uniform and has good consistency.


4. High contrast: Mask design, black SMD, non-reflective surface, large viewing angle, good display effect;


5. High uniformity of brightness and color: high-quality selected light-emitting devices of the same batch to ensure a higher uniformity;


6, adopt advanced concealed scheme: eliminate dark and ghosting completely.


7. High reliability and long life: The design of direct insertion adapter board simplifies the connection in the box, effectively reduces the problem of bad connection, and reduces signal attenuation and interference. High-quality light-emitting devices ensure high reliability and long life.


8. Seamless quick splicing, simple maintenance: the use of locking structure to make splicing operation simple and convenient without tools;


9. Noise-free: silent design, no air conditioning, fan installation, eliminate noise, reduce power consumption, save energy;


10. Real-time Error Detection Function: It can independently detect whether each LED is Open-Circuit or not without additional external components, and can eliminate the cross problems caused by it.



P2 (2).jpg

P2.976 High-Definition Led Display



ITEM P2.976
Pixel   Pitch(㎜) 2.976
Pixel   Density(pixel/㎡) 112896
Pixel   Component 1R1G1B
LED   Configuration SMD1515
Panel   Dimension(W×H)㎜ 250*250
Scan   Mode 1/28
Cabinet   Dimension(W×H)㎜ 500mm*500,500mm*1000mm
Cabinet   Material Die-casting Aluminum
Cabinet   Weight(㎏) 8,13
Brightness(cd/㎡) 1000Nit
Color   Temperature 3200K-9500K
Viewing   Angle(V) 140°
Viewing   Angle(H)  140°
Contrast   Ratio 3000:1
Max   Power Consumption(w/㎡) 1200
Ave   Power Consumption(w/㎡) 480
Operating   Power Source AC85~264V(47-63Hz)
Frame   Frequency(Frame/S) 60
Refresh   Rate(Hz) ≥1920
Gray   Level RGB65536Grade
Brightness   Adjustment Level 1000nit
Brightness   Adjustment Mode Manual/Automatic/Programmable
Control   Distance UTP<100m;Muti Mode   Fiber<500m;Single Mode Fiber<10Km
Operating   Temp ﹣20℃-﹢50℃
Operating   Humidity 10%-90%RH
Protecting   Rating IP31
MTBF >50000h
LEDLife Span >100000h
LEDBest View distance 2m-100m
